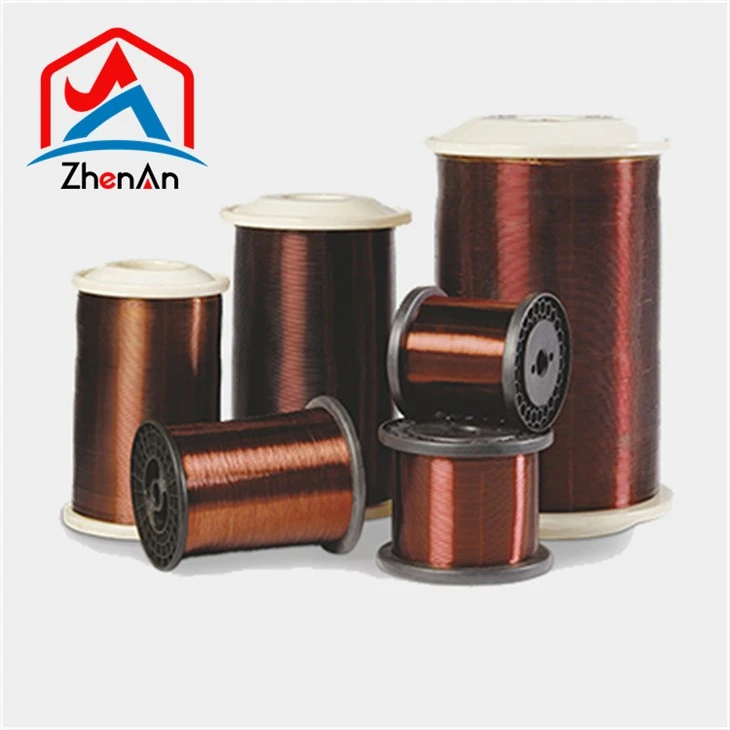

Enamel Coated Hlau



Enamel Wire, feem ntau hu ua hlau nplaum hlau, yog cov hlau uas tau coated nrog ib txheej nyias ntawm enamel rwb thaiv tsev. Cov hlau no yog qhov tseem ceeb hauv ntau yam khoom siv hluav taws xob thiab hluav taws xob vim nws muaj peev xwm nqa cov hluav taws xob tam sim no thaum raug kaw nruj nreem hauv cov coils tsis ua rau luv luv.



Hom Enameled Magnet Hlau
Enamel insulated hlau yog categorized raws li hom enamel rwb thaiv tsev siv, txhua qhov muab cov khoom tshwj xeeb haum rau kev siv sib txawv:



• Polyurethane Enamelled Wire: Paub txog nws qhov zoo tshaj plaws solderability, tso cai rau kev sib txuas yooj yim yam tsis tas yuav strip lub rwb thaiv tsev.
• Polyester thiab Polyesterimide Enamelled Hlau: Muaj cov thermal ua haujlwm zoo thiab lub zog txhua yam, haum rau kev siv kub dua.
• Polyamide-imide Enamelled Wire: Muab cov thermal thiab tshuaj tiv thaiv zoo heev, zoo tagnrho rau siv rau hauv huab cua.
• Polyimide Enamelled Wire: Paub txog kev ruaj ntseg zoo dua thiab ua haujlwm rau cov kuab tshuaj thiab hluav taws xob, ua rau nws haum rau aerospace thiab tshwj xeeb electronics.







Enameled hlau qeb	Thermal qib	Kev ua tau zoo	Txuj	Kev sim hauv paus
Polyvinyl acetal / Tus kheej nplaum acetel QQ/QQN	120	Kev ua tau zoo ntawm kev tiv thaiv cov roj transformer thiab khawb.Zoo heev yooj & adhesion, thiab zoo hydrolysis kuj. Ntxiv nrog rau cov khoom ntawm acetal xaim, cov khoom nplaum lub zog tuaj yeem txhawb nqa los ntawm cua sov.	GB/T 7095 2-2008 IEC 60317-18: 2004 GB/T 6758 1-2007 IEC 60851-5	GB/T 4074 TS EN 60851 - IEC 60851 (ib GB/T 4074 TS EN 60851 - IEC 60851 (ib
Polyester QZ	130	High mechanical zog, zoo khawb kuj.zoo hluav taws xob kev ua tau zoo.	GB/T 7095 2-2008 IEC 60317-11: 2005	GB/T 4074 TS EN 60851 - IEC 60851 (ib
Hloov polyester QZ (G)	155	Zoo poob siab kuj.High mechanical zog, zoo hluav taws xob & hnyav kuj.	GB/T 7095 3-2008 IEC 60317-16: 1990	GB/T 4074 TS EN 60851 - IEC 60851 (ib
Polyester imide QZY	180	High tshav kub tsis kam, zoo tshuaj hnyav hnyav, thiab kub poob siab kuj	GB/T 7095 4-2008 IEC 60317-28: 1990	GB/T 4074 TS EN 60851 - IEC 60851 (ib
Polyester imide / polyami-deimide composite txheej Q(ZY/XY)	200	Cov khoom muaj txiaj ntsig zoo, xws li cov tub yees tsis kam, hnyav tsis kam thiab hluav taws xob tiv thaiv	GB/T 7095 6-2008 IEC 60317-29: 1990	GB/T 4074 TS EN 60851 - IEC 60851 (ib
Polyamide hmoov QXY	220	Zoo tshuaj hnyav tsis kam	GB/T 7095.1	GB/T 4074 TS EN 60851 - IEC 60851 (ib



raws li nram no:

C1Rp0.2(>100~180)N/mm²,C2Rp0.2(>180~220)N/mm²,C3Rp0.2(>220 ~ 260) N / hli.



Peb tuaj yeem tsim khoom raws li kev qhia tshwj xeeb uas muab los ntawm cov neeg siv khoom.

Qauv	Lub npe	Ntau lawm specification Scope
QQB	120 acetal / self-adhesive acetal enameled ca hlau	a:080-5.60mm b:2.00-1600mm
QZB	130 polyester enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm
QZ(G)B	155 hloov polyester enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm
QZYB	180 polyester imide enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm
QYB	220 polyamide imide enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm
Q(ZY/XY)B	200 polyester imide / polyamide-imide enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm
QQBN	120 tus kheej nplaum polyvinyl acetal enameled tiaj hlau	a:080-5.60mm b:2.00-1600mm

Xim zaj duab xis	Xim zaj duab xis rwb thaiv tsev thickness: δ mm
Qib 1	{{0}}.06 Tsawg dua lossis sib npaug rau δ Tsawg dua lossis sib npaug rau 0.11
Qib 2	{{0}}.12 Tsawg dua lossis sib npaug rau δ Tsawg dua lossis sib npaug rau 0.17



Xim zaj duab xis	Min. breakdown voltage tus nqi (zoo tus nqi): V
	Chav kub	Kub kub
Qib 1	1000	750
Qib 2	2000	1500



Daim ntawv thov

• Transformers: Siv rau cua coils hauv transformers, ua kom muaj txiaj ntsig ntawm kev hloov hluav taws xob ntawm lub voj voog los ntawm electromagnetic induction.
• Lub cev muaj zog: Cov tshuab hluav taws xob siv cov hlau enamelled rau winding stator thiab rotor coils, tsim cov hlau nplaum tsim nyog rau kev ua haujlwm.
• Inductors: Inductors cia siab rau enamelled hlau coils khaws lub zog hauv qhov chaw sib nqus thaum hluav taws xob ntws los ntawm lawv.
• Cov neeg hais lus: Hauv cov neeg hais lus, enamelled hlau yog siv rau hauv lub suab coil, uas cuam tshuam nrog cov hlau nplaum ua suab nrov.
• Hard Disk Drives: Siv nyob rau hauv kev nyeem / sau taub hau thiab actuators, muab cov hlau nplaum tsim nyog rau cov ntaub ntawv khaws cia thiab rov qab.
• Electromagnets: Qhov tseem ceeb rau kev tsim cov hlau nplaum siv hauv ntau yam khoom siv, suav nrog cov relays, solenoids, thiab sensors.











Q: Cov khoom dab tsi ntawm enameled txhuas hlau tuaj yeem siv tau?
A: 1. High-frequency transformer, zoo tib yam transformer;

2. inductance, electromagnetic kauj;

3. lub cev muaj zog, suav nrog tsev neeg lub cev muaj zog, ntau yam micro-motors thiab compressors, uas muaj kev xav tau ntau dua ib puag ncig;

4. tshwj xeeb electromagnetic hlau rau suab coil thiab optical tsav;

5. electromagnetic hlau rau zaub deflection coil;

6. electromagnetic hlau rau demagnetization kauj.

Q: Yuav ua li cas txog lub pob?
A: Peb feem ntau siv cov ntawv los yog npuas qhwv cov hlau, thiab ib los yog ob lub spools muab tso rau hauv lub thawv. Raws li qhov loj ntawm spool los txiav txim siab.

Q: Yuav ua li cas txog lub peev xwm ntawm koj lub tuam txhab?
A: Peb muaj 32 lub tshuab tsom rau enameled hlau, txog 30000 square meters rau Tshuag.

Q: Peb tuaj yeem kuaj koj qhov zoo li cas?
A: Peb tuaj yeem xa cov qauv khoom txaus rau koj rau kev sim, thiab kuv lub tuam txhab yuav muab cov yeeb yaj kiab kuaj thiab cov ntawv xeem.
